Description :
◆ with Baytrail-D/I/M serial Processor；
◆ J1900\\J1800\\E3845；
◆ DDR3 SODIMM 204 Socket Max support 8G；

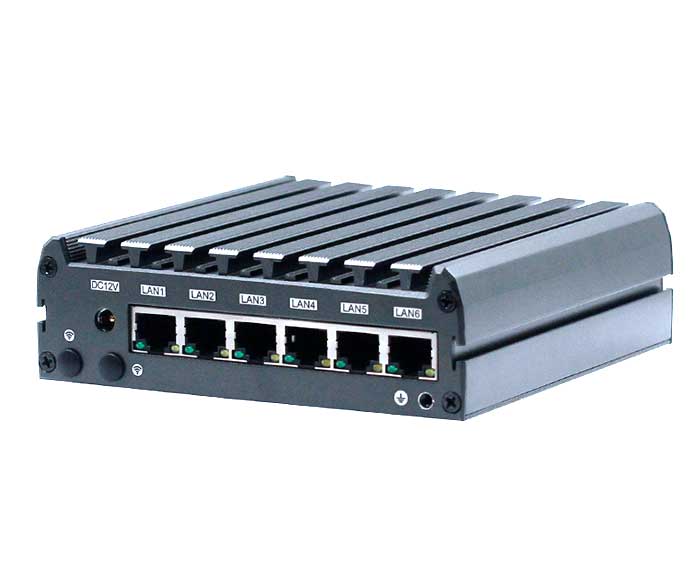

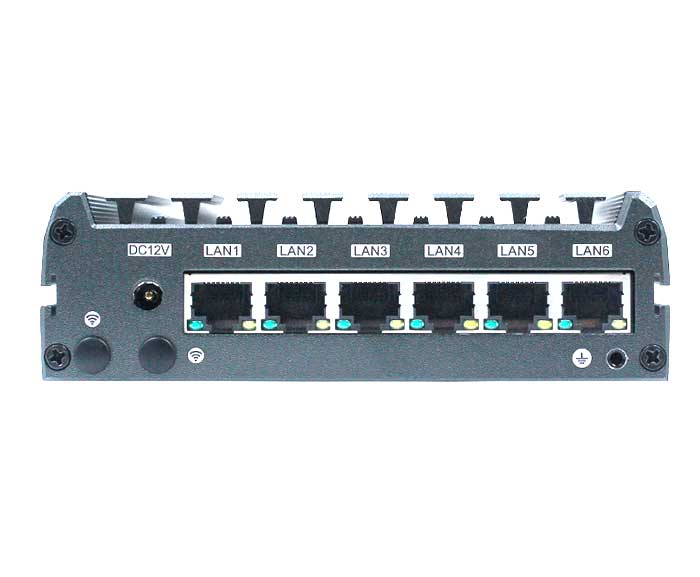

◆ 6*Intel I211ATOr Intel I210 Gigabit LAN (optional)；
◆ Onboard 32/64/128G EMMC chip (optional);
◆ 1*RJ45 interface RS232 or RS485 (choose one)
◆ Single input DC power supply, DC12-19V power supply;
◆ size: 134*126*40.6mm
|
CPU |
CPU |
With Baytrail-D/I/M serial Processor |
|
|
CPU package |
BGA |
|
|
Chipset |
Baytrail-D/I/M serial Processor |
|
|
Bioses |
EFI Bioses |
|
Memory |
Technology Architecture |
Single channel DDR3L 1066/1333MHz |
|
|
capacity |
Max support 8GB DDR3L memory |
|
|
Socket |
DDR3 SODIMM 204 Socket |
|
Video |
Graphics controller |
Intel HD Graphics |
|
|
HDMI |
HDMImax support resolution 1920x1080 |
|
I/O backpanel |
Ports |

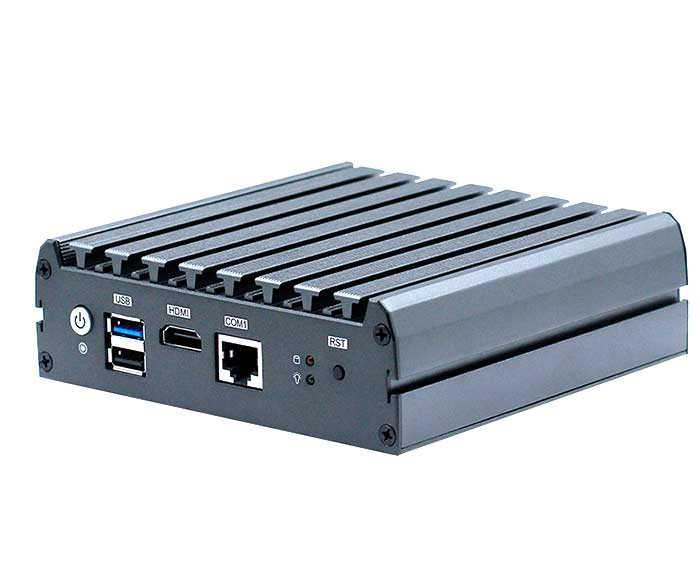

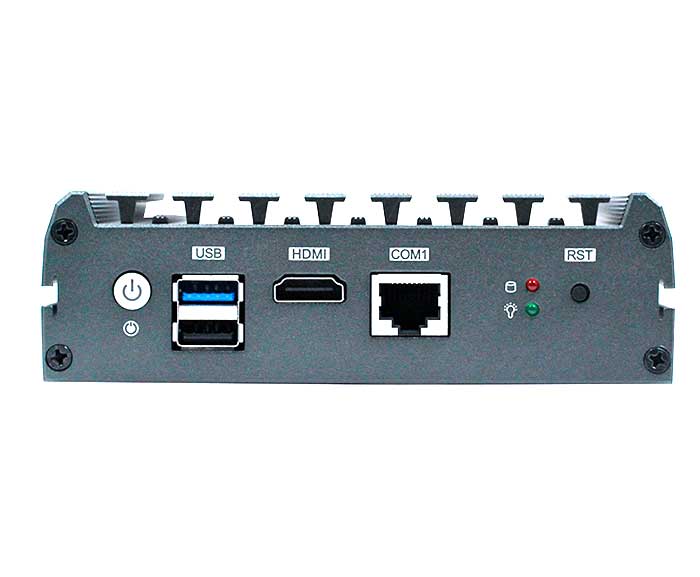

1*HDMI 1*USB3.0 1*USB2.0 6*LAN 1*Quick start button with indicator 1*Reset button 1*DC 1*Power indicator 1*Hard disk indicator |
|
Internet |
controller |
6*Intel I211ATOr Intel I210 Gigabit LAN (optional) |
|
Input or output interface |
USB |
1*USB2.0 1*USB3.0 max support+5V/1A |
|
|
Com |
1*RJ45 Port RS232 or RS485(optional) |
|
Expansion bus |
Mini-PCle |
1*Mini-PCIe, support PCIE and USB protocol signal equipment |
|
storage
|
SATA |
1*standard SATA3 Port, max transmission rate 6Gb/s |
|
|
M-SATA |
1*Mini-PCIe M-SATA Scoket, support SANDISK protocol，max transmission rate 6gb/s |
|
|
EMMC |
Support 32/64/128G (optional) |
|
power supply |
Power type |
Single input DC power supply, DC12-19V, +/- 5% |
|
working environment |
Operating temperature |
-20℃ ~ +60℃ |
|
|
storage temperature |
-40℃ ~ +85℃ |
|
|
Working humidity |
0% ~ 90% relative humidity, no condensation |
|
|
Storage humidity |
0% ~ 90% relative humidity, no condensation |
|
System support |
|
Windows7 Windows10 Linux androids |
|
Measurement |
size |
134*126*40.6 mm |
|
|
weight |
0.5KG |
|
Certifications |
|
CE,ROHS,FCC |
