Description :
Onboard Intel Alder Lake-N series processors;
Onboard LPDDR5 memory, total maximum 16GB;
1 x Intel i226-V network, POE for option;
1 x LVDS/EDP, 1 x HDMI, M-Key, E-Key, B-Key;
2 x COM, 8_bit GPIO
DC 12V; Size: 100x72mm
|
Processor System |
Onboard Intel Alder Lake-N series processor, with or without fan |
|
|
EFI Bioses |
|
Memory |
Board-mounted LPDDR5 memory slot, up to 16GB |
|
Storage |
M-Key 2242, PCIe4.0 x2 protocol |
|
|
1 x SATA3.0, 2Pin power supply |
|
Display |
1 x HDMI2.0, 4K @60Hz |
|
|
1 x LVDS/EDP |
|
Board Edge I/O |

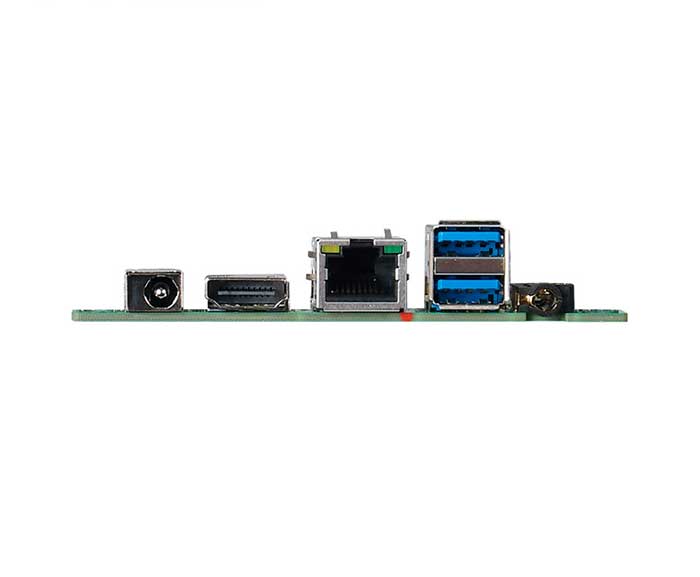

DC JACK, HDMI, 2 x USB3.2, 1 x LAN, Audio |
|
Extended interface/function |
External TPM2.0 is optional, not available by default |
|
|
1 x E-Key (PCIe+USB2.0 protocol, WIFI/BT module) |
|
|
1 x B-Key (USB2.0+ USB 3.0 protocol, 4G/5G module) |
|
|
2 x COM, RS232 /422/485, pitch 2.0mm, Bioses selection |
|
|
2 x JUSB2.0 pin header, 2x5Pin, pitch 2.0mm |
|
|
8_Bit GPIO |
|
|
1 x 4Pin PWM CPU FAN |
|
Power Supply |
DC 12V, 60W |
|
Working Environment |
Working temperature: -20℃ ~ +60℃; Working humidity: 5% ~ 90% |
|
|
Storage temperature: -40℃ ~ +85℃; Storage humidity: 5% ~ 90% |
|
Operating System |
Windows10, Windows11, Linux |
|
Size |
100 x 72 mm |
|
Net Weight |

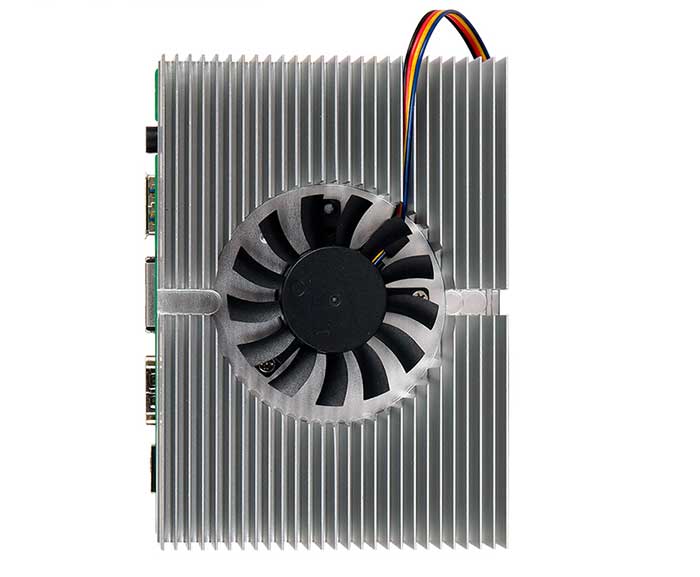

Approximately 100g without radiator, approximately 220g with radiator |
